Vitocal 150‑A Air Source Heat Pump.

Monoblock heat pump with indoor and outdoor units:

• For room heating/cooling and DHW heating, up to 70 °C flow temperature

• Monoblock indoor unit with heat pump control unit

• High efficiency circulation pump for the secondary circuit

• 4-3-way diverter valve and safety assembly

• Integral instantaneous heating water heater

• Integral buffer cylinder and overflow valve

Heat pump control unit for weather-compensated operation.

• 7-inch colour touchscreen with energy cockpit

• WiFi hotspot for local service without internet connection

• Internet connection via WiFi

• Control of a DHW circulation pump

• Control of an instantaneous heating water heater

• Active cooling control function

• Integral heat meter

• Setting of low-noise mode for the outdoor unit

• Optimised energy management, e.g. in conjunction with photovoltaic system, power storage system

• Display of energy flows in the ViCare app and ViGuide

AF Version:

• With integral electric ribbon heater in the condensate pan

• Permissible operating pressure: Heating water 3 bar (0.3 MPa)

• Colour of indoor unit: Vitopearlwhite

• Colour of outdoor unit: Vitosilver

• Low running costs thanks to high COP (coefficient of performance) to EN 14511: Up to 5.0 at A7/W35

• Output control and DC inverter for high efficiency in partial load operation

• A maximum flow temperature of up to 70 °C at an outside temperature of -10 °C enables use in both new build and modernisation projects.

• Self-optimising control of the flow rate via Viessmann Hydro AutoControl

• Environmentally responsible, natural refrigerant R290 with a particularly low GWP of 0 (GWP = Global Warming Potential)

• Convenient reversible design for heating and cooling

• Especially quiet operation thanks to Advanced Acoustic Design (AAD)

• Web-enabled through integral WiFi or service link

• Operation, optimisation, maintenance and service via ViCare app and ViGuide

• Guided commissioning via ViGuide

Standard delivery:

Complete heat pump in monoblock version, comprising an indoor and outdoor unit.

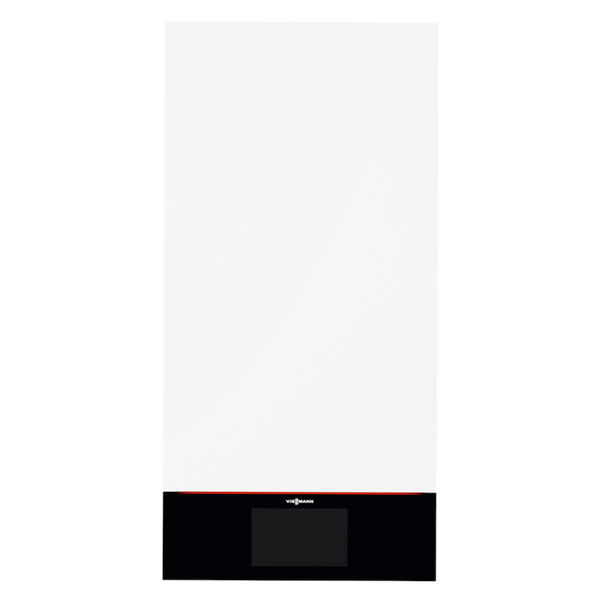

Indoor unit:

• Integral 4/3-way valve for central heating/DHW heating/bypass

• Integral high efficiency circulation pump for the secondary circuit

• Integral instantaneous heating water heater

• Integral 16 litre buffer cylinder

• Integral safety valve and digital pressure gauge

• Weather-compensated heat pump control unit with outside temperature sensor

• Flow sensor

• Wall mounting bracket, standard connection pipes

• 10 l diaphragm expansion vessel

Outdoor unit:

• Inverter-controlled compressor, 4-way diverter valve, electronic expansion valve, evaporator, condenser, EC fan

• Factory-filled with refrigerant R290

• Heating water filter upstream of condenser

• Transport aid for outdoor unit

• AF version: With integral electric ribbon heater for the condensate pan

Important Notes.

• Heat pumps must be commissioned by Viessmann Technical Service or a specialist heat pump contractor certified by Viessmann

• A hydraulic connection set must also be ordered to install the appliances; see "Accessories"

• If the heat pump is being installed to modernise a heating system, a dirt separator with magnet is essential; see "Accessories"

• Conformity

• Connection _ Wiring Diagram

• Energy Consumption Datasheet

• Installation Service

• Maintenance Checklist

• Product information

• Service Intructions

• Technical Guide

• User Instructions

Energy management systems.

Viessmann energy management:

• Viessmann energy management is integrated into the latest generation of Viessmann heat pumps and energy storage units

• It enables balanced operation of the components in the house that generate, consume or store electricity.

• The focus is on optimising self-consumption of self-generated electricity from photovoltaic systems.

• The energy management system provides extended information about electricity flows and also CO2 savings.

• If desired, customers can add further optimisation levels in the ViCare app.

For more information on the system requirements, the functions and use, see Viessmann's Main Website Energy Management
