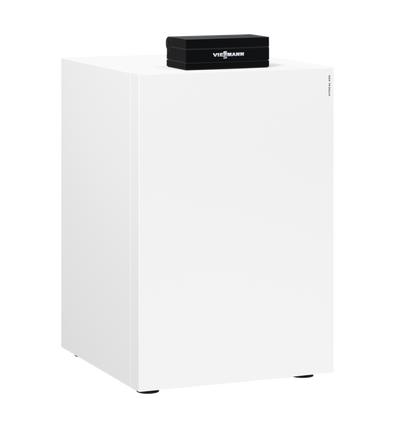

Vitocal 200-G.

Vitocal 200-G 5.6 kW BWC.M 201.B06 Refrigerant circuit with fixed heating output.
Heat pumps with electric drive for central heating and DHW heating in mono mode or dual mode heating systems.

Colour: Vitopearlwhite
Flow temperature up to 65 °C
Permissible operating pressure: Heating water 3 bar (0.3 MPa)
Low running costs thanks to high SCOP to EN 14825: up to 5.3 for average climatic conditions and low temperature application (W35)
Particularly low noise thanks to new sound insulation concept - up to 49 dB(A)
Mono mode operation for central heating and DHW heating
Low running costs with high efficiency due to refrigerant cycle diagnostic (RCD) system with electronic expansion valve (EEV)
Integral instantaneous heating water heater, e.g. for screed drying
Easy handling as the heat pump module can be quickly removed thanks to push-fit connections.
Optimised utilisation of power generated on-site by photovoltaic systems
Web-enabled via Vitoconnect (accessories) for operation and service using Viessmann apps.

Vitotronic 200 Type WO1C, for weather-compensated operation:

Cylinder temperature controller
Operation with user prompts
Integral diagnostic system
Control of an instantaneous heating water heater
Control of an additional oil/gas boiler
Cascade control for up to 5 Vitocal (requires accessories)
Control of compatible Vitovent ventilation units
Natural cooling control function (accessories required)
Swimming pool heating
Integral checking of the seasonal efficiency/energy statement
Optimised self-consumption
Extensions are required for every heating circuit with mixer, additional oil/gas boiler, cooling control function and swimming pool heating (see Accessories).

Brine/water heat pump in a compact casing
Built in 3-Way divert valve heating / hot water
Integral high efficiency brine circuit pump (primary circuit)
Integral high efficiency heating circuit pump (secondary circuit)
Integral instantaneous heating water heater
Safety assembly for the heating circuit
Weather-compensated Vitotronic 200 heat pump control unit with outside temperature sensor
Electronic starting current limiter and integral phase monitor
Connection pipes for flow and return of the brine circuit (primary circuit), heating circuit and DHW flow (secondary circuit) for connection at the top.
Integral E-Heating

Unit	BWC 201.B06	BWC 201.B08	BWC 201.B010
Output	5.8kW	7.5kW	10.4kW
Performance COP	4.6	4.6	4.8
Seasonal Performance SCOP	4.8	5.2	5.3
Flow temperature	65°C	65°C	65°C
Length	680mm	680mm	680mm
Width	600mm	600mm	600mm
Height	975mm	975mm	975mm
Weight	145kg	145kg	145kg

Vitocal 200-G Standard Warranty	Trained Installer Only	Trained Installer Only
Standard 2 year warranty	Standard 5 year warranty	7 Year warranty + £Fee
